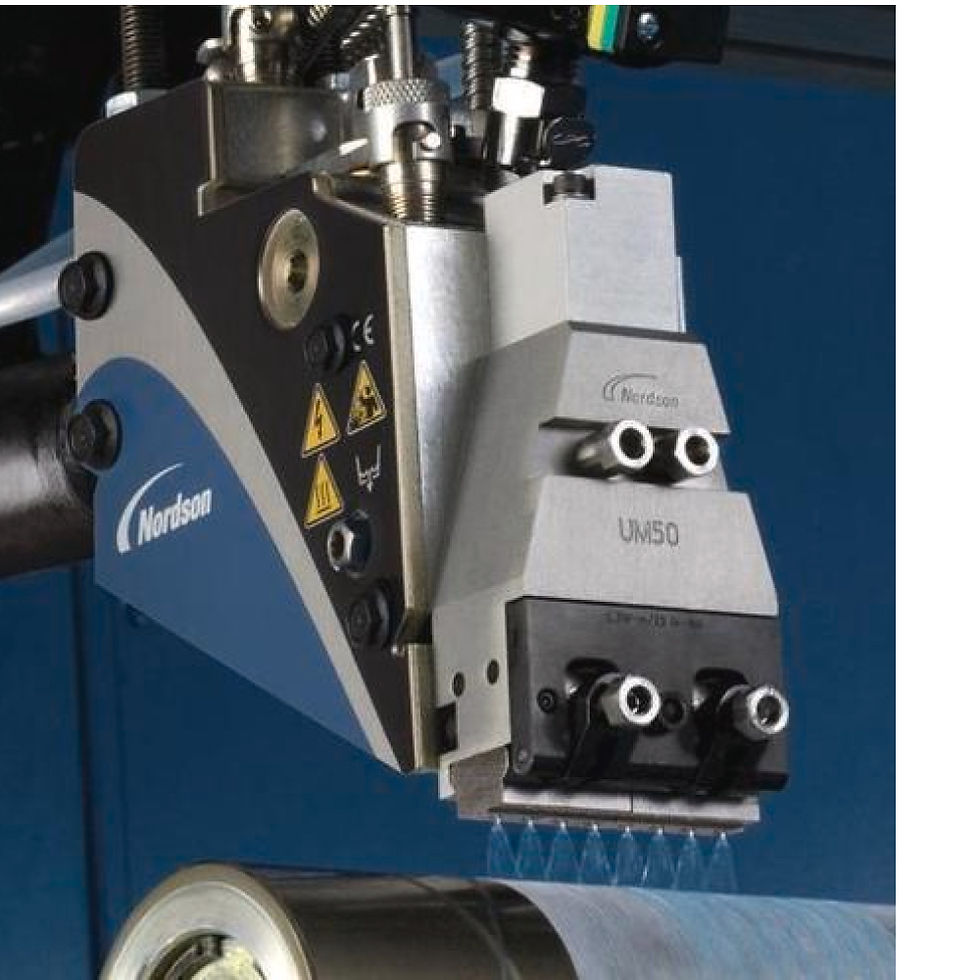

Nordson Universal™ Summit™ Nozzles
Universal Summit nozzles improve bond strength and product quality in hot melt adhesive nonwovens and product assembly laminating applications.
Overview
Universal Summit nozzles deliver superior control of hot melt adhesive fiber size, density and pattern width for numerous nonwovens and product assembly laminating applications. Nozzles are compatible with all Nordson Universal modules and Universal applicators.
Product Video
Technical Specifications
Module Capability | All Universal Modules |
Materials of Construction | Brass with hard-release coating, available in steel. |
Edge Control | +/- 2 mm (+/-0.08 in.) |
Nozzle Orifice Sizes | 25 mm nozzles: 0.46 mm (0.018 in.) 22 mm nozzles: 0.51 mm (0.020 in.) |
Nozzle to Substrate Distance | 10 to 30 mm (0.38 to 1.2 in.) 20 mm (recommended) |
Maximum Hydraulic Flow | 100 grams per minute per nozzle at 10,000 centipoise |
Maximum Add-on Weight | 14 GSM @ 300 m/min, 10 GSM @ 400 m/min |
Production Speed Capability | 10 to 400 m/min (33 to 1312 ft/min) |
Adhesive Fiber Size |
