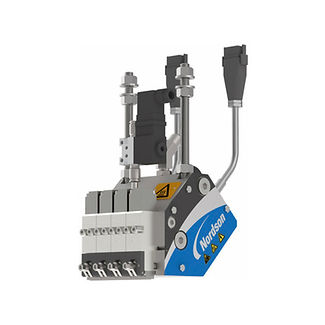

Nordson AltaSpray™-c Applicators
AltaSpray™-c applicators provide the flexibility and performance capabilities of a single-platform, hot melt adhesive dispensing design.
Overview
The initial investment and ongoing cost of ownership are reduced from the applicators’ streamlined, economical configuration.
Simplified system connectivity and fewer cabling requirements optimize the applicator’s use with AltaBlue™ series adhesive melters.
AltaSpray-c applicators are compatible with Universal™ modules.
Such modules accept numerous dispensing technologies, including CF200, Universal CF, Summit™, Rhythm™ Construction and Signature® nozzles for lamination, and Universal SureWrap®, Rhythm™ Elastic and Allegro™ nozzles for elastic attachment.
Product Video
Technical Specifications
Module compatibility | Universal UM25 |
Operating temperature | 70° to 191° C (160° to 375° F) |
Working hydraulic pressure | 13.8 to 55.2 bar (200 to 800 psi) |
Maximum hydraulic pressure | 89.6 bar (1300 psi) |
Maximum hydraulic flow (per module) | 110 grams per minute at 10,000 centipoise, 21 grams per square meter at 200 m/min |
Actuation air pressure1 | 4.1 bar (60 psi) recommended |
Maximum process air flow | 1.2 scfm @ 191° C (375° F), 1.5 scfm @ 177° C (350° F) |
Technical specifications may vary depending on the selected configuration. Please contact us for detailed specifications tailored to your requirements.
